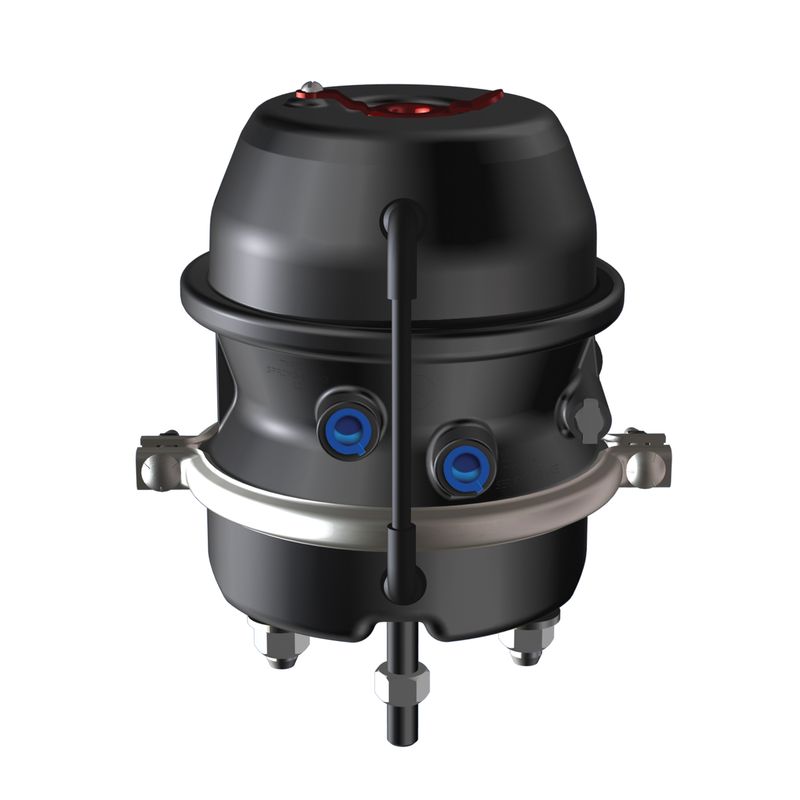

3531051 / TR3030TS
The TR series is an industry standard double-diaphragm spring brake with the original tamper resistant safety design. This model can come with additional features such as: external breather tube system, epoxy-coated inside and out for extra protection in unusually tough, corrosive operating environments, extra parking force, and weld-reinforced mounting bolts to provide a stable, strong mounting base for installation on equipment where extreme vibration is a concern. The TR series is also available in a 3-inch long stroke design, providing the reserve stroke needed for added braking safety. Piggyback Plus kits are available for some models.
- Tamper Resistant
- Long Life Spring
- Center Hole Diaphragm/Shield
- Epoxy Coated Head, NPC, Lower Push-Rod Assembly, Return Spring, Piston/Center Case
- Heavy-Duty Steel NPC
- Polymer Guides
- Heavy-Duty Diaphragm
- Breather Tube
- Composite Guide
| Image | Name | Part Number | Add to Cart |
|---|---|---|---|
|
Diaphragm | 8017730P | |
|
Return Spring | 8068002 | |
|
Hex Nut - Yoke SAE | 8130004P | |
|
Clamp Band Assembly | 8216045P | |
|
Kit - Mounting Nuts & Washers SAE | 9002001P | |
|
Kit - Clamp Nuts & Bolts | 9003001P | |
|
Kit - Release Bolt | 9007003P | |
|
NP Chamber Assembly | 9015122 | |
|
|
Kit - NP Chamber | 9015149 | |
|
Kit - Weatherseal™ Plug | 9019005P | |
|
Kit - Push-Rod Assembly SAE | 9064003 | |
|
Kit - Center Hole Shield | 9065002P | |
|
Kit - Breather Tube | 9081001P |
