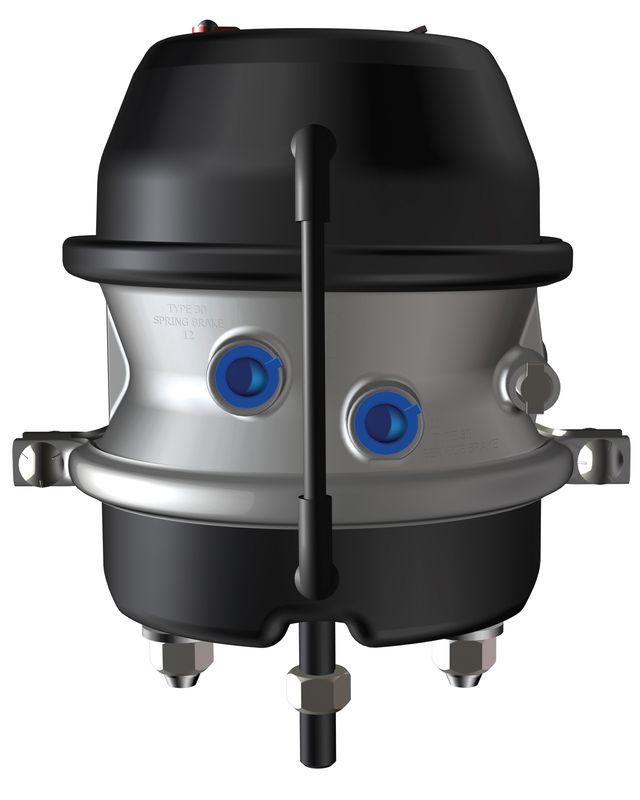

3436051 / TR3636T
The TR series is an industry standard double-diaphragm spring brake with the original tamper resistant safety design. This model can come with additional features such as: external breather tube system, epoxy-coated inside and out for extra protection in unusually tough, corrosive operating environments, extra parking force, and weld-reinforced mounting bolts to provide a stable, strong mounting base for installation on equipment where extreme vibration is a concern. The TR series is also available in a 3-inch long stroke design, providing the reserve stroke needed for added braking safety. Piggyback Plus kits are available for some models.
- Tamper Resistant
- Externally Stored Release Bolt
- Epoxy-Coated Head
- 360 Aluminum Center Case
- Long Life Power Spring
- Weatherseal Plug
- Heavy-Duty Nylon Reinforced Diaphragm
- Breather Tube
- Composite Guide
| Image | Name | Part Number | Add to Cart |
|---|---|---|---|
|

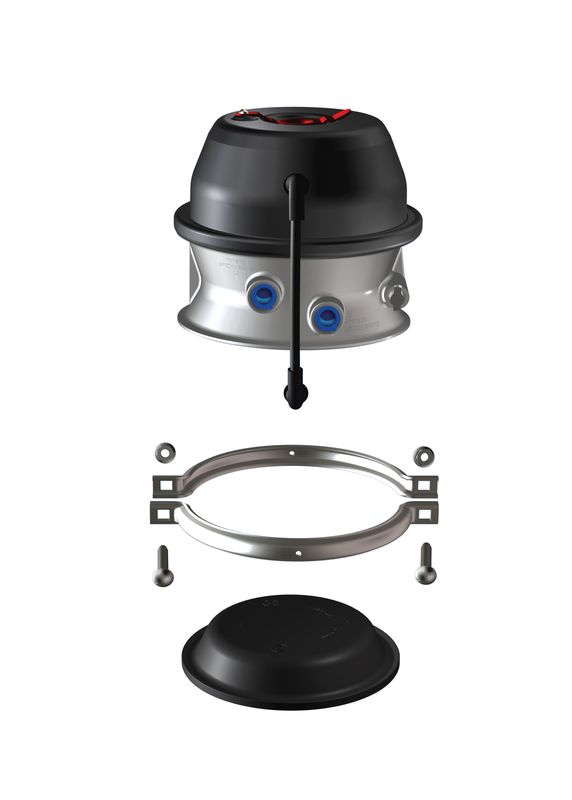

Kit - Piggyback Plus SAE | 3436008 | |
|

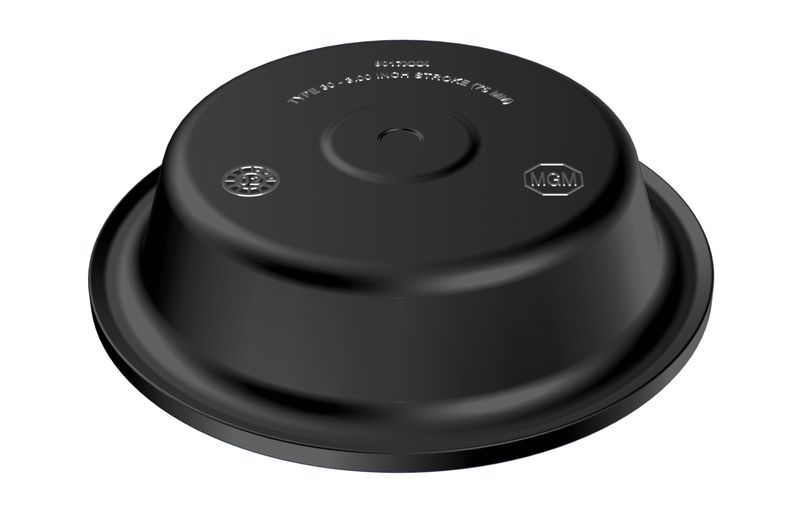

Diaphragm | 8017836P | |
|

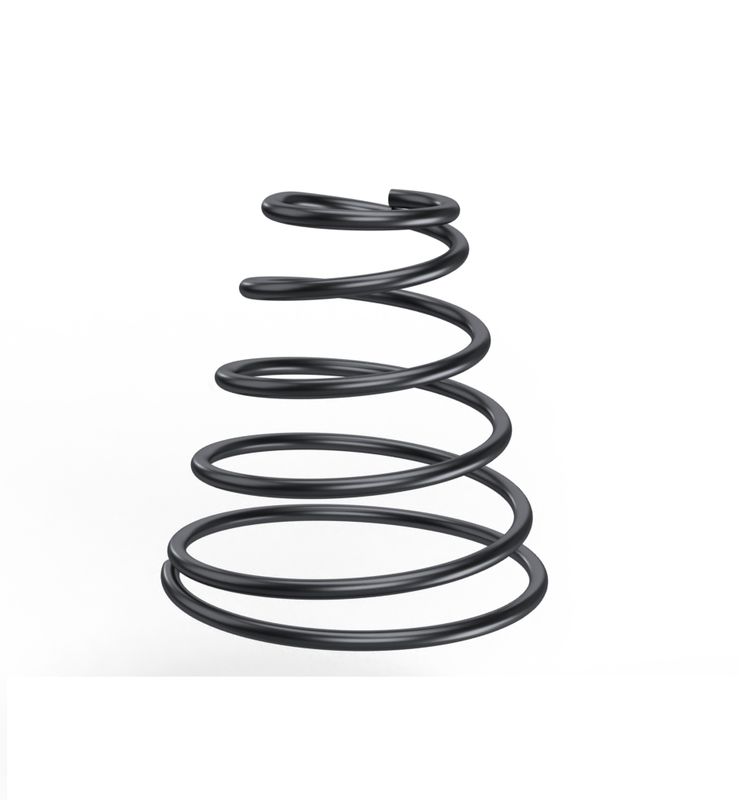

Return Spring | 8068012 | |
|

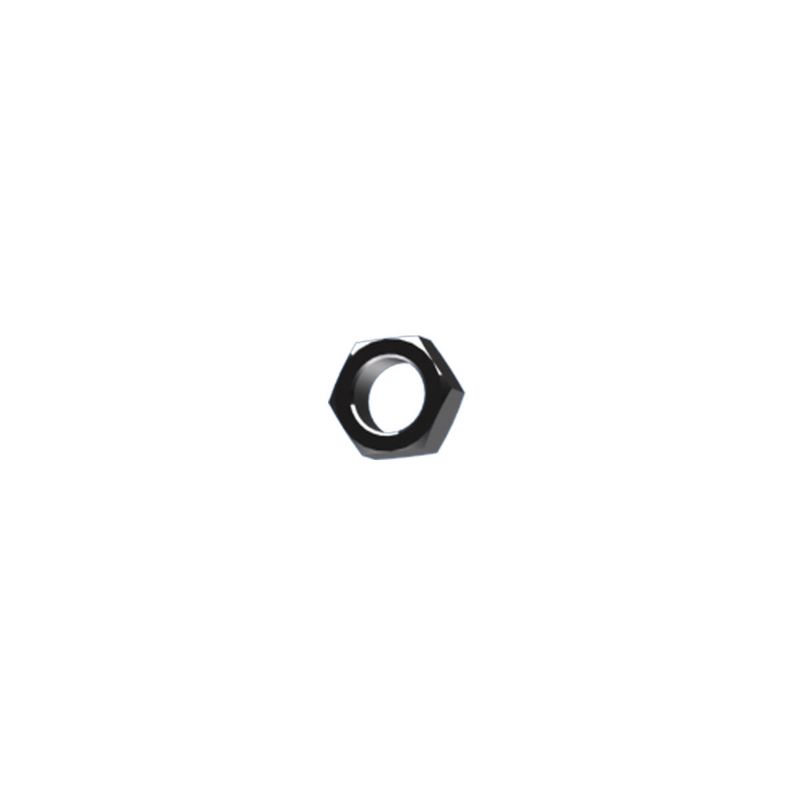

Hex Nut - Yoke SAE | 8130004P | |
|

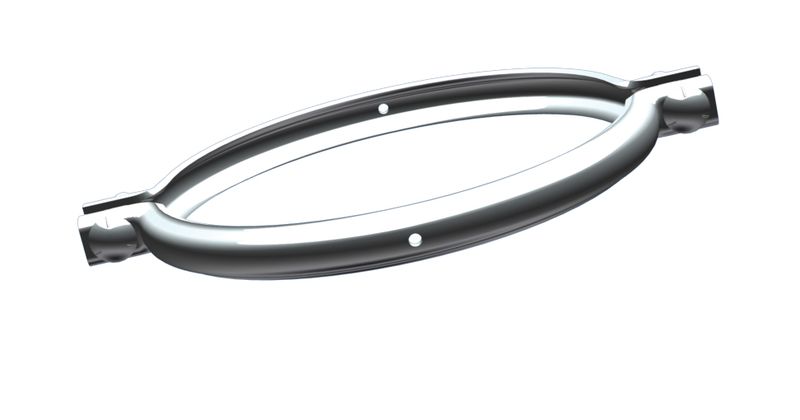

Clamp Band Assembly | 8216036P | |
|
Kit - Mounting Nuts & Washers SAE | 9002001P | |
|

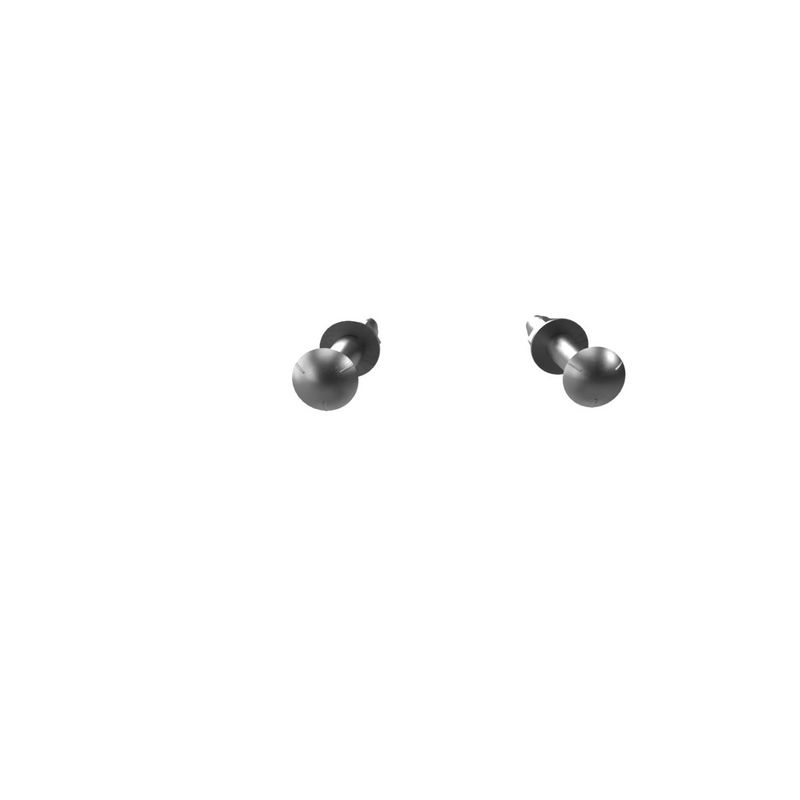

Kit - Clamp Nuts & Bolts | 9003001P | |
|

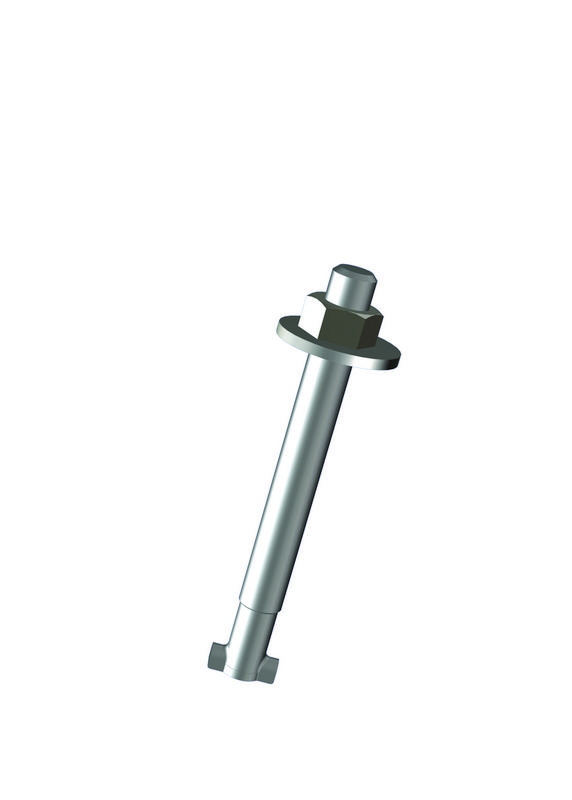

Kit - Release Bolt | 9007009P | |
|

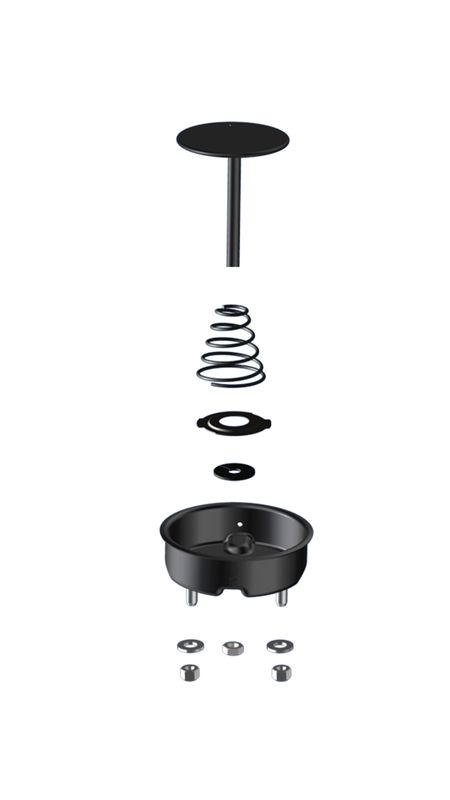

NP Chamber Assembly | 9015108 | |
|
|
Kit - NP Chamber | 9015150 | |
|

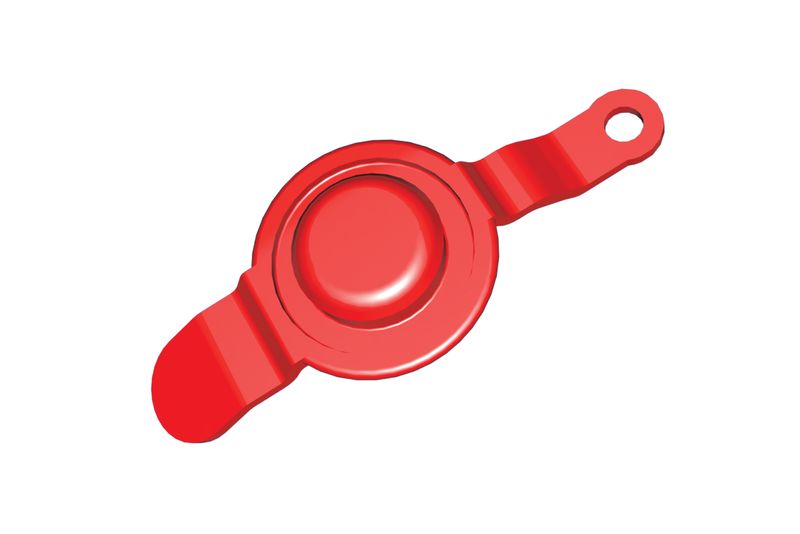

Kit - Weatherseal™ Plug | 9019006P | |
|

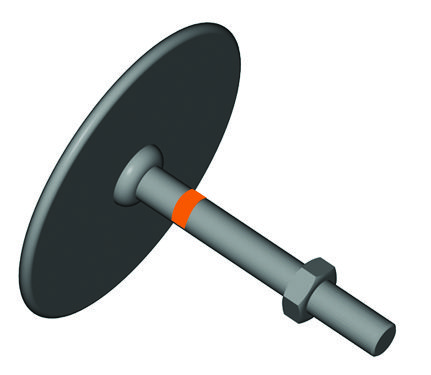

Kit - Push-Rod Assembly SAE | 9064004 | |
|

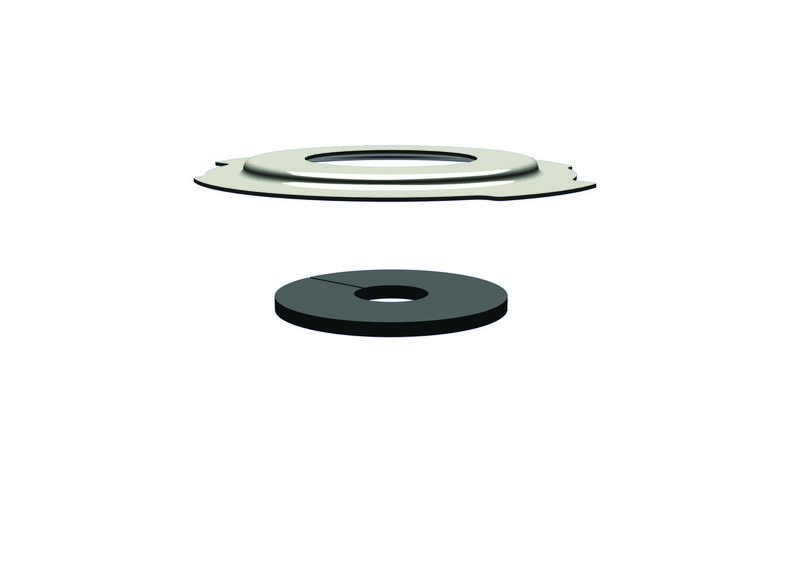

Kit - Center Hole Shield | 9065002P | |
|

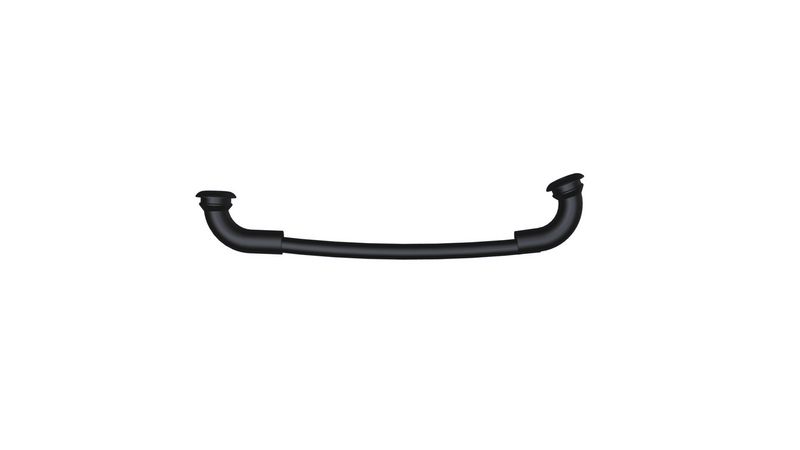

Kit - Breather Tube | 9081001P |
