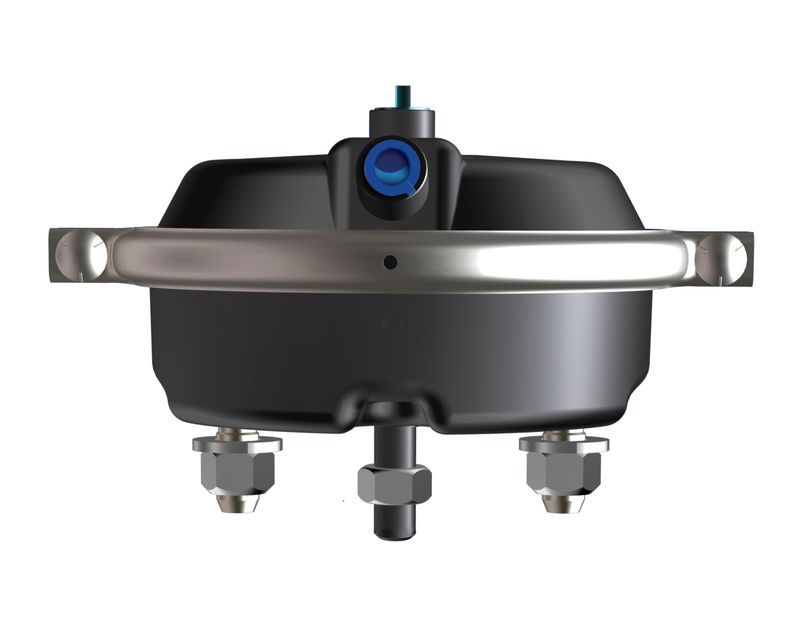

1420001 / C20
MGM C and CS Model service chambers offer the ultimate in dependability and long service life. Our service chambers are manufactured with heavy-gauge formed steel components: epoxy-coated for reliable corrosion protection to take on the toughest jobs in the harshest environments. We offer two service chambers, the CS16LH and CS20L, that are totally sealed for safety and for applications where space is at a premium. The CS16LH also has a 4.75 inch mounting bolt spacing to give you added strength, increased mounting base to wing bracket interface, and to help standardize cam-brake wing brackets on the entire vehicle to one size.
- Steel pressure cap - Epoxy Coated
- Heavy gauge steel mounting base
- Heavy-duty nylon reinforced diaphragm
- Mounting studs, grade 5, heat treated/plated
| Image | Name | Part Number | Add to Cart |
|---|---|---|---|
|
Diaphragm | 8017120P | |
|
Return Spring | 8068002 | |
|
Hex Nut - Yoke SAE | 8130004P | |
|

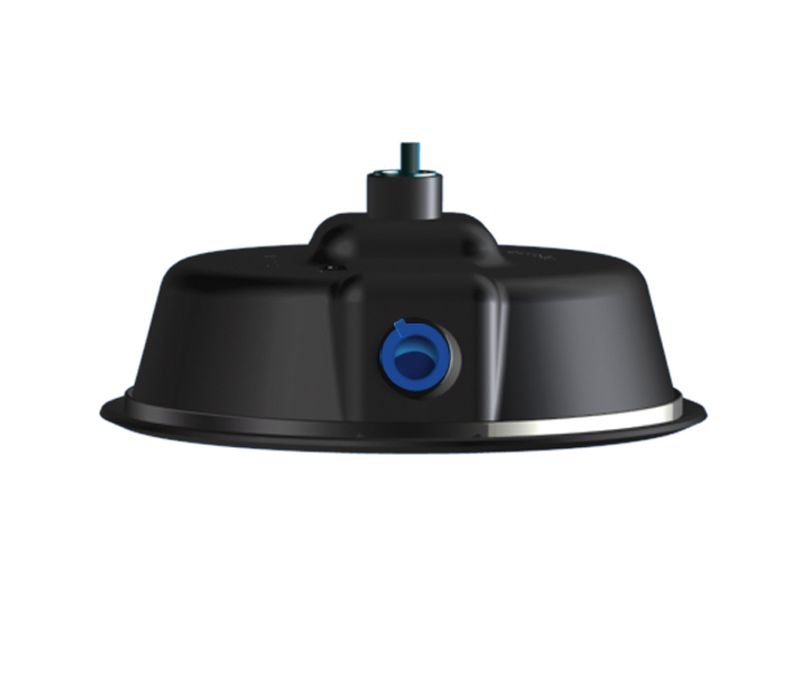

Pressure Cap (2-inlets/steel) | 8210010 | |
|

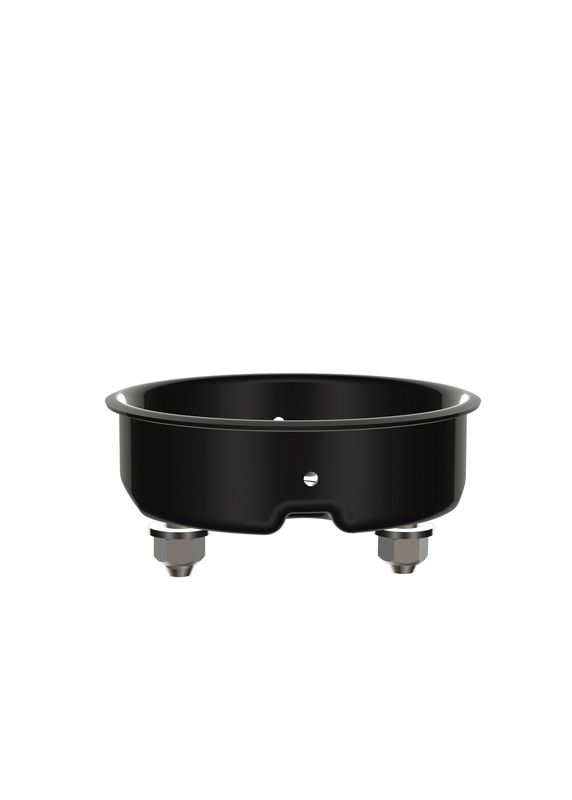

NP Chamber Assembly | 8215169 | |
|
Clamp Band Assembly | 8216020P | |
|
Kit - Mounting Nuts & Washers SAE | 9002001P | |
|
Kit - Clamp Nuts & Bolts | 9003001P | |
|
Kit - NP Chamber | 9015046 | |
|
Kit - Push-Rod Assembly SAE | 9064001 | |
|
Kit - Center Hole Shield | 9065002P |
